Heat recovery commercial heat pump 72kw

Model No.︰AS72/R
Brand Name︰OEM/ODM
Country of Origin︰-
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 18 Related Items
Prev89101112Next

Product Description

Hiseer’s   heat recovery commercial heat pump are well designed for high efficiency running, brings  consistent comfort to thousands of people around the world.



Compact modular cascade installation design.



Hiseer heat recovery heat pump performance data:



Model Number Unit AS66/R
Heat output/Power consumption at A7/W35℃ kW 72.00/17.50 COP=4.11
Heat output/Power consumption at A7/W45℃ kW 68.65/20.76 COP=3.31
Heat output/Power consumption at A7/W55℃ kW 65.00/24.7 COP=2.63
Heat output/Power consumption at A2/W35℃ kW 54.23/16.70 COP=3.25
Heat output/Power consumption at A2/W45℃ kW 51.84/19.74 COP=2.63
Heat output/Power consumption at A-7/W35℃ kW 45.60/16.70 COP=2.73
Heat output/Power consumption at A-7/W45℃ kW 44.18/19.36 COP=2.28
Cool output/Power consumption at A35/W7℃ kW 62.00/21.00 EER=2.95
Hot water output from 20℃ to 50℃  l/h 2200
Power   380-415V/3PH/50Hz
Starting current A 145
Compressor   2× Copeland Scroll
Condenser   Brazed plate heat exchanger
Refrigerant R410A filling weight kg 12kg X 2
Max. running power input KW 32
Max. running current A 64
Nominal flow heating medium  of A/C circuit  m3/h 12.4
Internal pressure drop at nominal flow of A/C circuit kPa 31
Nominal flow heating medium  of  DHW circuit m3/h 12.4
Internal pressure drop at nominal flow of  DHW circuit kPa 31
Air flow m3/h 20000
Nominal fan output  W 750x2
Max outlet heating medium temperature 55
Max outlet DHW temperature 58
Width mm 2010
Depth mm 980
Height mm 1850
Pipe connector   DN65
Weight kg 630
Operating ambient temp. range Heating -10~35
Cooling 10~45
DHW -10~43
The data above is tested by EN14511.A7/W35℃ means outside air temp. 7℃, outlet water temp. 35℃







Built-in differential pressure flow switch protect the unit from insufficient water flow rate.

flow switch.jpg

Copeland scroll R410A compressor

COPELAND

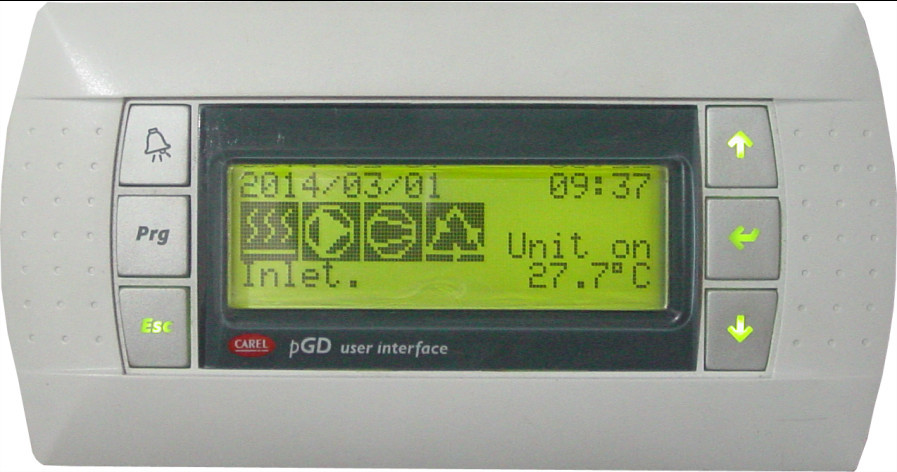

With Carel controller, the control system is intelligent ,stable and durable to assure safe running .






SWEP/GEA Brazed Plate Heat Exchanger (BPHE) is one of the most efficient ways to transfer heat from refrigerant to water. A BPHE consists of corrugated plates combined to create complex channels through which refrigerant and water can be distributed.


Emerson Expansion valve:

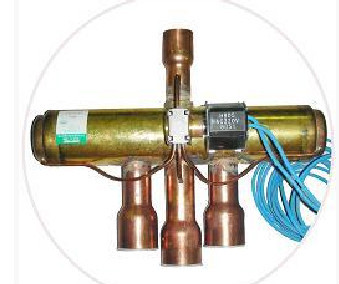

 Saginomiya 4 way valve:

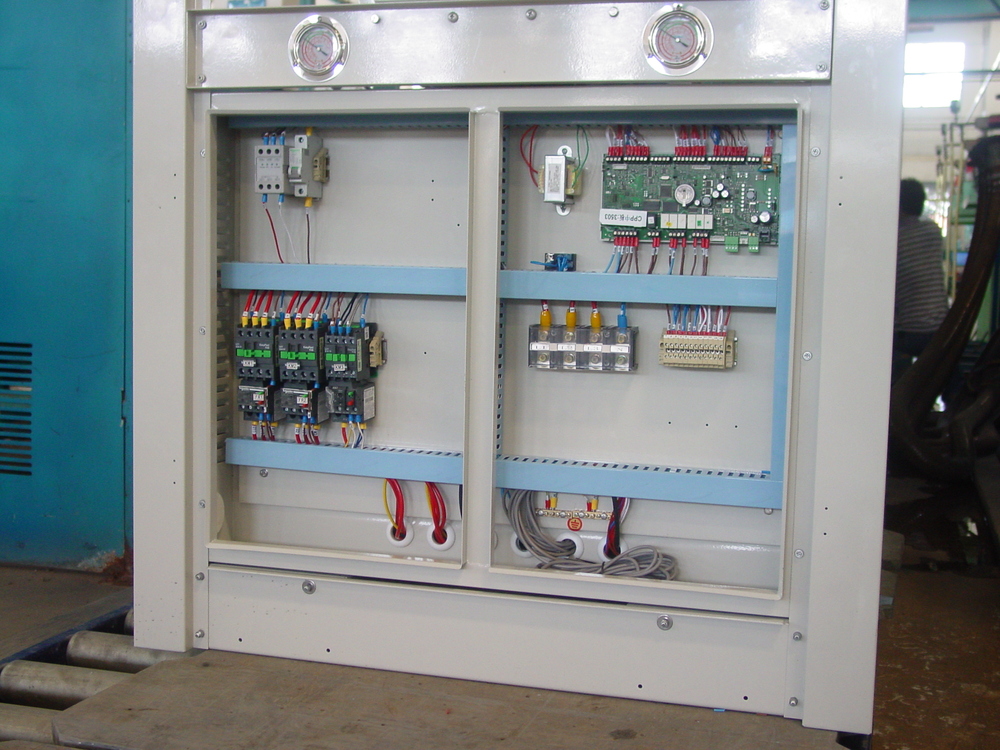

Hiseer heat recovery heat pump AS66/R control board:

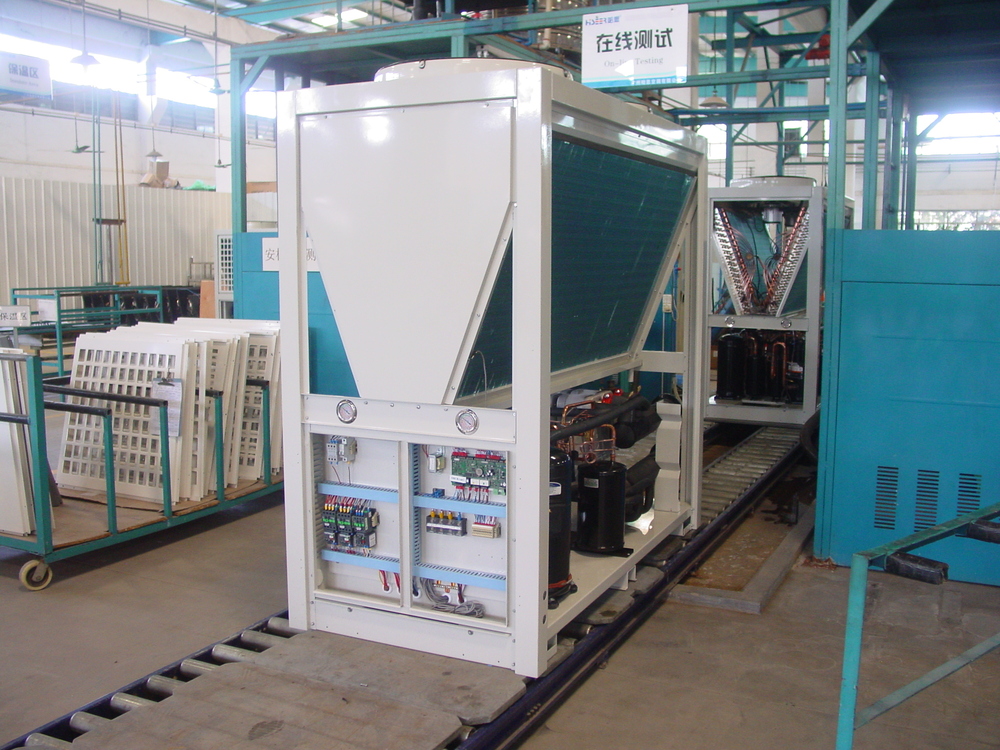

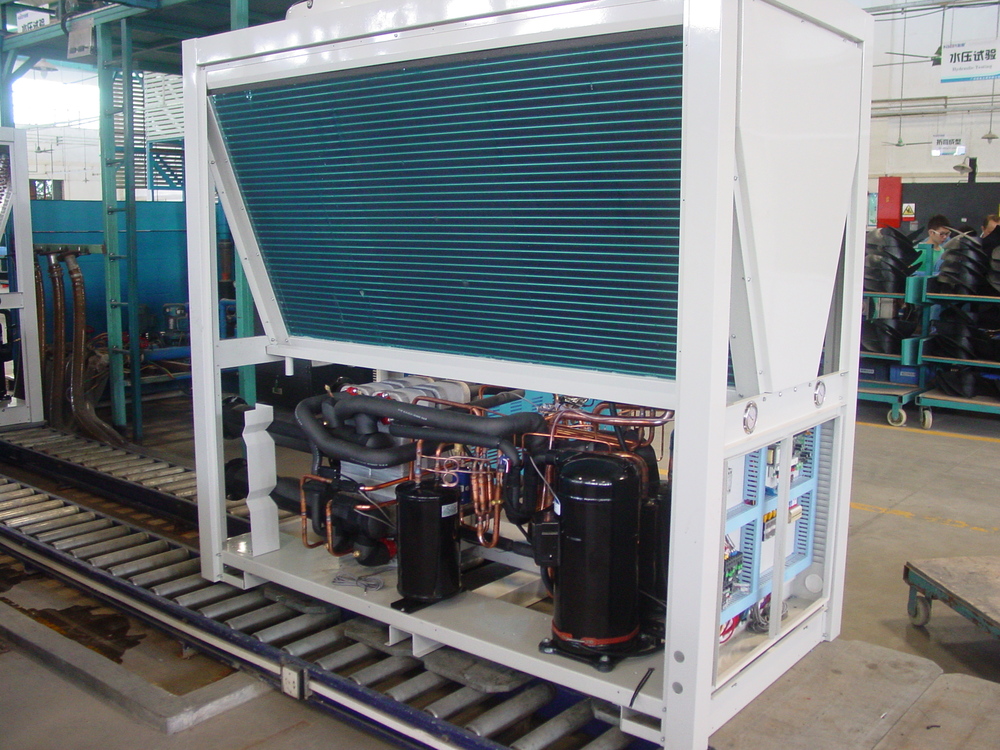

Hiseer heat recovery heat pump workshop test:

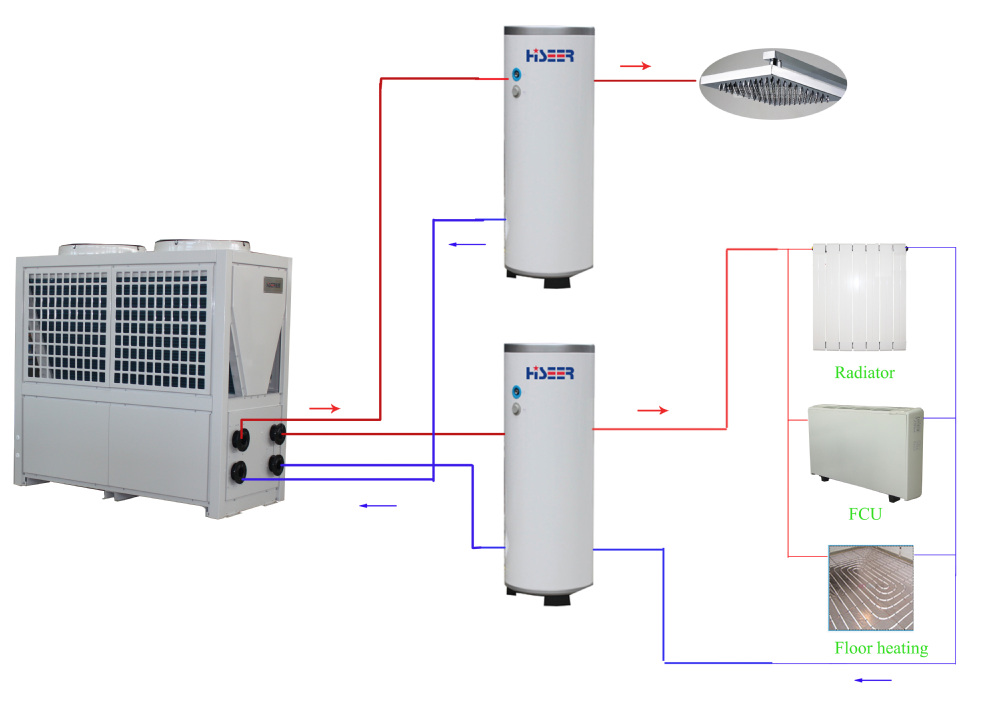

Hiseer heat recovery heat pump application:

LSQ66R2R connection.jpg





Hiseer heat recovery heat pump installation demo:



LSQ66 projects 1.jpg





Hiseer showroom:

show room



Hiseer metal sheet process:

cutting machine





bending machine







Hiseer factory:

factory
