Model No.︰GS10
Brand Name︰HISEER
Country of Origin︰China
Unit Price︰-
Minimum Order︰5 pc
Share on:

 Total 4 Related Items
Prev1234

Product Description

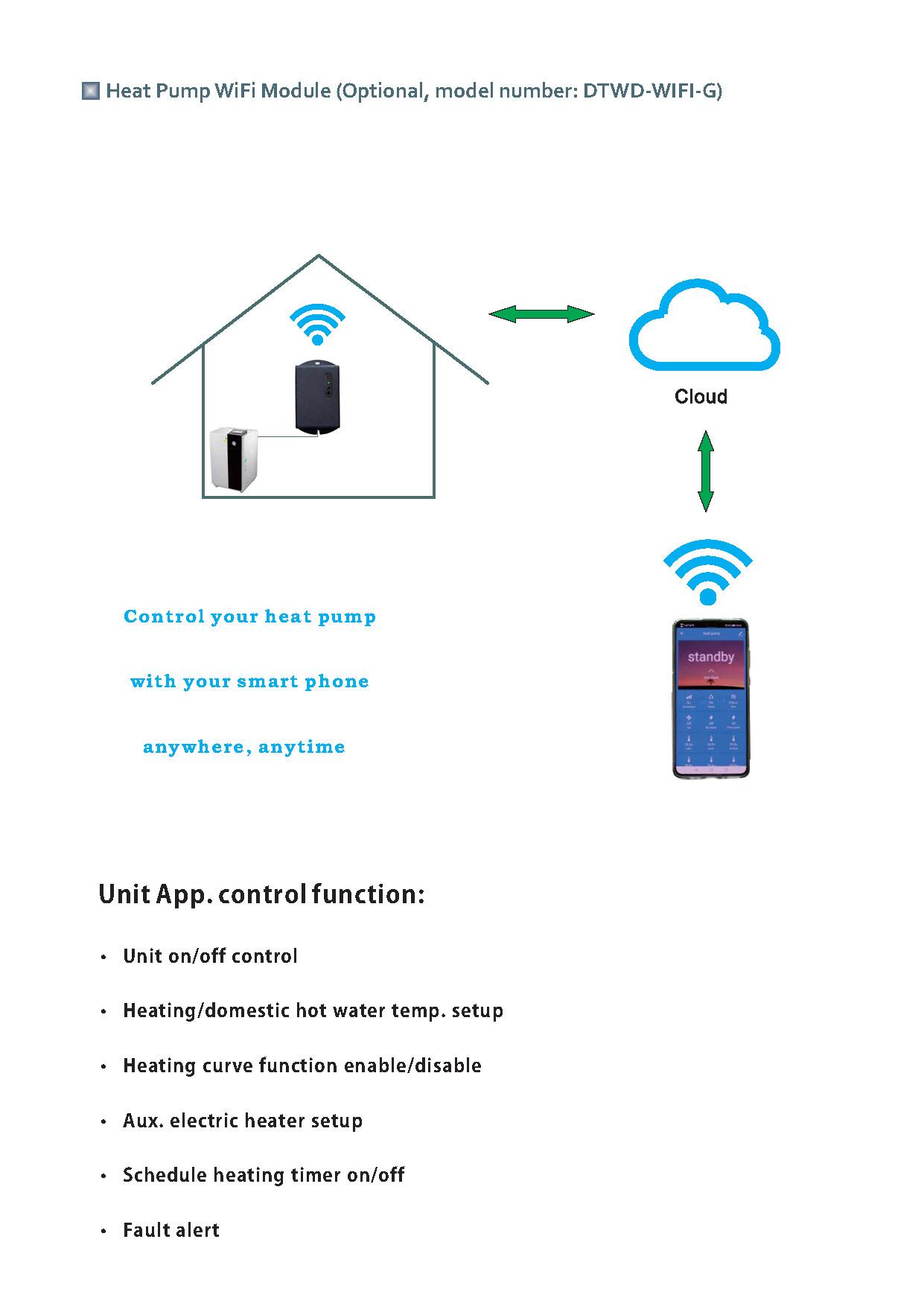

Smart phone App. control WiFi module is optional .Control your heat pump from anywhere at any time.

Heating and domestic hot water;

Hitachi R410A scroll compressor;
Swep/Gea Plate type heat exchanger;

Emerson Expansion valve

Carel controller, easily understandable control
Internal 3 way revert valve and hot water pump are optional
Internal Electric heater backup is optional

Differential pressure flow switch is optional

Rust free galvanized sheet case
Varied heat curve
Quite running design for indoor installation.

All components are tested to achieve long time reliability and durability.

Erp energy efficiency class: A++ .

Technical specification:

Heat pump Type GS10
Dimensions,weights,connection dimensions
Dimensions HxWxD 1040x640X600
Weight kg 130
Refrigerant Type R410A
Filling weight kg 1.60
Permissible operating pressure Mpa 4.2
Pipe connector-hot side Inch G11/4”
Pipe connector-cold side Inch G11/4”
Evaporator Type Brazed plate heat exchanger
Condenser Type Brazed plate heat exchanger
Compressor   1xScroll
Running current at B0/W35 A 4.93
Starting current compressor (with stalled rotor) A 49
Soft-start relay   option
Performance Heat pump
Heat output at B0/W35 kW 9.7
Power consumption  kW 2.45
Performance factor   3.96
Indoor side volume flow m3/h 1.67
Indoor side pressure drop kpa 13
Outdoor side volume flow m3/h 2.29
Outdoor side pressure drop kpa 20
Heat output at W10/W35 kW 13.0
Power consumption  kW 2.38
Performance factor   5.46
Indoor side volume flow m3/h 2.24
Indoor side pressure drop kpa 19
Outdoor side volume flow m3/h 3.04
Outdoor side pressure drop kpa 25
Power Type Triple phase with Hitachi compressor
Sound power level dB(A) 47
The above data is tested by EN14511
B0/W35 means heating source brine inlet temp. 0℃,heating flow temp. 35℃
W10/W35 means heating source water inlet temp. 10℃,heating flow temp. 35℃
The Sound power level is tested by EN12102



Product Image

geothermal heat pump
geothermal heat pump

wifi module
wifi module

ground source heat pump
ground source heat pump

hot water heat pump
hot water heat pump
